GTT 135
GTT 135
HULL #2
Exclusive OFFER

GTT 135 hull number 2 is available with a special discount including a complete set of Bentley Home furniture and accessories. We have managed to reduce the standard delivery time by almost half.

Key Features
Performance

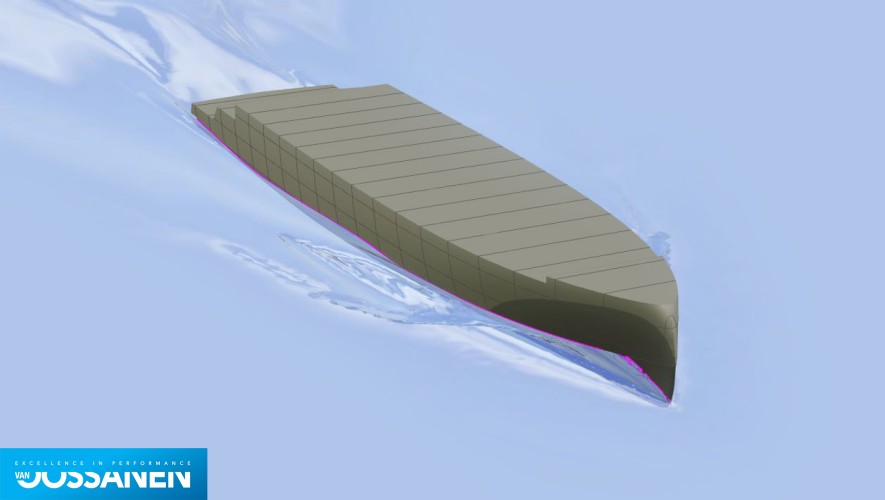

  • Fast displacement hull form
    Fast displacement hull form
    Devised by the famous Dutch naval architects Van Oossanen, the GTT 135 unique hull features a round-bilge shape for remarkably low resistance and low fuel consumption while still being capable of high speeds. The design decreases vertical accelerations of the hull, which translates into a far more comfortable motion when sailing. The bow shape with a vertical stem maximises the waterline length, enhancing performance even more. To keep spray levels low, an integrated spray rail deflects water hitting the bow area. Built entirely from marine grade aluminium, the GTT 135 hull guarantees unparalleled comfort and safe operation for more than 25 years
  • Robust full aluminium construction

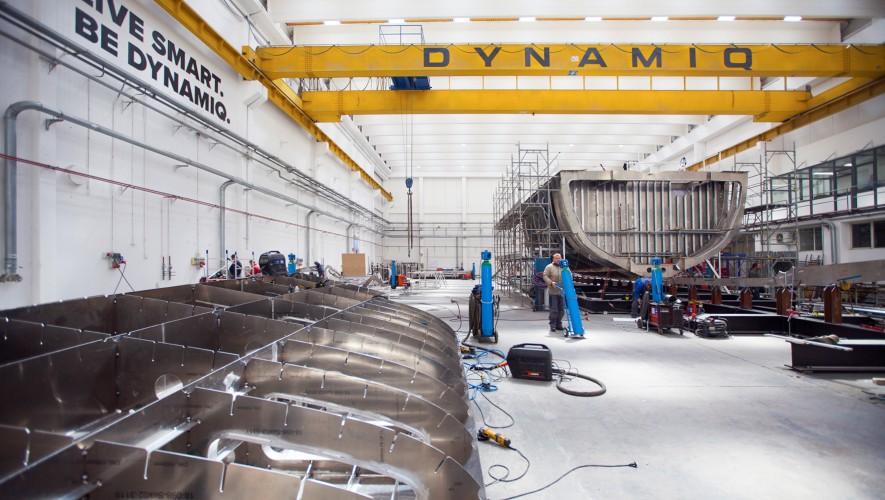

    Robust full aluminium construction
    Certified marine-grade 5083 aluminium and stronger 5383 Sealium, a lightweight alloy that weighs three times less than steel, is used for Dynamiq GTT 135 hull and superstructure. A lighter hull provides better performance, shallower draft, lower fuel consumption. Another benefit is that aluminium guarantees a stiff, robust and vibration-free vessel that is very comfortable and behaves well in a heavy swell or choppy seas. The strength-to-weight ratio of aluminium is equivalent to that of steel and there is much less risk of serious damage in case of a collision than with a fibreglass hull.

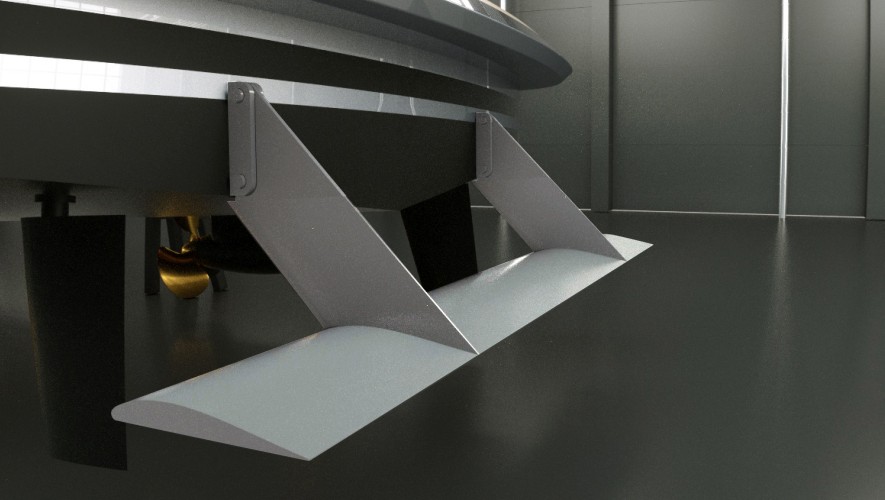

  • Hull Vane
    Hull Vane
    The Hull Vane® is a patented fixed foil located under the stern of the yacht. Developed by renowned Dutch naval architects Van Oossanen it influences the stern wave pattern and creates hydrodynamic lift, which is partially oriented forward. This innovation leads to significant reduction of the hull's resistance, which in turn enables the installation of smaller engines, fuel savings and longer range. The Hull Vane® also improves stability under way and at anchor, while reducing both pitching and yawing motions.

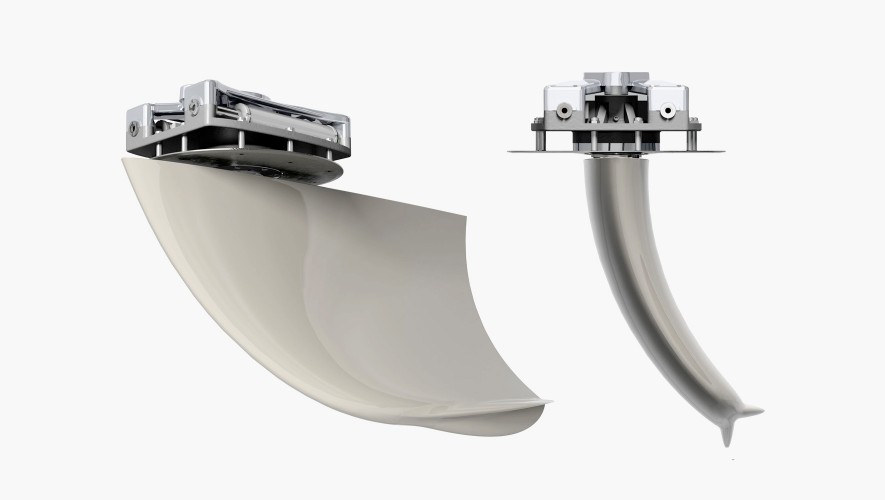

  • Curved Stabilizer Fins
    Curved Stabilizer Fins
    Vector Fins stabilizers dramatically reduce roll as well as undesired yaw and sway motions caused by active fins. Their vertical concave shape creates a net force direction, both in cruising and at-anchor modes, so the work is more up-down instead of side-to-side. By changing the net force angle, this also increases the leverage arm around the boat’s rolling point, further increasing the physical forces that work on the boat to reduce roll. This provides more efficient stabilization per fin size, which means that drag and power consumption are less than with other fins offering comparable roll reduction.
  • Transatlantic range

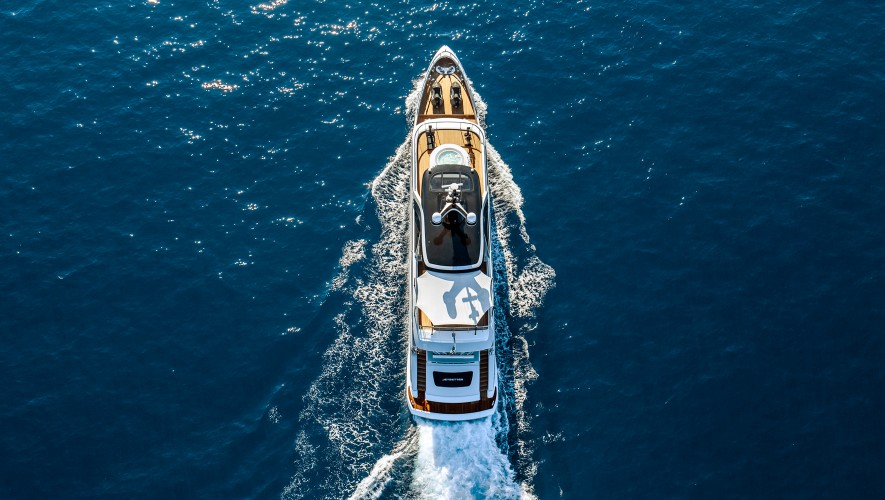

    Transatlantic range
    The GTT 135 has an ocean-going range of 3,400 miles at 10 knots and is perfectly equipped for long-range cruises, which means owners have the opportunity to enjoy two seasons during the year (Med and Caribbean) and greater freedom navigating remote locations with no bunkering infrastructure. GTT 135 is equipped with high-capacity Miele marine fridges and freezers, cold garbage stores, separate laundry facilities and plenty of storage space. Generous fresh-water tanks and powerful water-makers allow guests to spend long periods of time sea in complete comfort.
Fast displacement
hull form
Robust full aluminium
construction
Hull Vane
Curved
Stabilizer Fins
Transatlantic
range
Comfort
  • Bentley Home exclusive furniture collection
    Bentley Home exclusive furniture collection
    Feel the way you drive, with a new range of handmade furniture inspired by the techniques, materials and finishes that characterise Bentley’s renowned car interiors. Browse through a selection of loose furnishings and accessories from cult brand Bentley Home and lamps from Tom Dixon and Flos. Marbles, fabrics, leathers and accessories can be customised by the client with Bentley Home designers to ensure individual selections. Hand-tufted carpets in pure silk, bamboo and finest New Zealand virgin wool are supplied by OT (Germany), a world leader in the manufacturing and laying of exclusive hand-made carpets.
  • Main saloon fireplace
    Main saloon fireplace
    A real fireplace becomes a centrepiece and adds a cosy touch, especially when cruising early or later in the season when the evenings can be a bit chilly. They are completely safe and fully certified and rely on low-heat producing fuels such as ethanol.
  • High-end audio by Bowers & Wilkins
    High-end audio by Bowers & Wilkins
    Dynamiq has partnered with iconic British sound maker Bowers & Wilkins to deliver pristine sound to its discerning customers. All luxury spaces and each guest cabin will be carefully analysed and studied by experts to ensure the ideal positioning of the speaker systems to have the best possible sound expertise on board.
  • Wheelhouse by Klassen
    Wheelhouse by Klassen
    Dynamiq and German VIP car outfitter Klassen carefully developed the “Wheelhouse by Klassen” option. The GTT 135 wheelhouse will be designed for yacht owners and captains who appreciate the quality and style of Klassen VIP shuttles with the same sporty trim and high end finished as you have in Klassen cars.

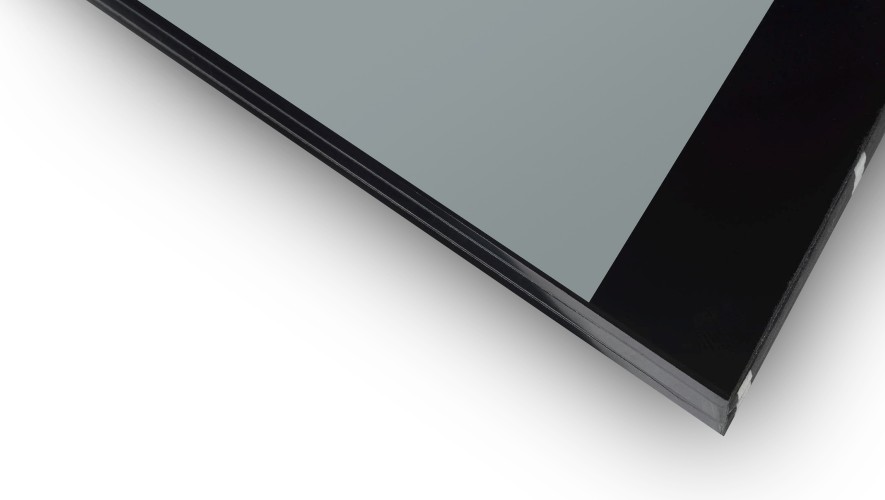

  • XIR glass
    XIR glass
    The GTT 135 features next-generation laminated XIR glass that allows maximum light transmission, while keeping solar heat gain at bay. Harmful UV rays are almost completely blocked, and heat transmission reduced by 60%. The result is an interior that offers the wide panoramas of large windows without the penalty of heat build-up. This means significantly reduced air-conditioning loads and therefore lower running costs. The glass manufacturer is Isoclima, an Italian high-tech company that also supplies glass for luxury automobiles such as Bentley, McLaren, Mercedes and BMW.
Bentley Home exclusive
furniture collection
Main saloon
fireplace
High-end audio
by Bowers & Wilkins
Wheelhouse
by Klassen
XIR glass

MAIN Dimensions

GTT 135
Length overall 41 m / 135’
Draft 1.6 m / 5'3’’
Sun Deck length 17.7 m / 58’
Sun deck area 120 m2 / 1292 sq ft

Interior headroom (max)

Sun deck
2.2 meters / 7’3’’
Main deck
2.2 meters / 7’3’’
Lower deck
2.15 meters / 7’1’’

Specification

  • Hull type
    Round-bilge, fast displacement
    Length overall
    41 meters / 135’
    Beam overall
    8.2 meters / 26’11”
    Draft
    1.6 m / 5'3’’
    Gross tonnage
    299 GT
    Material
    Aluminium, 5083
    Main engines
    2x MAN V12-1650, 1,213 kW
    Generators
    2x 70 kW, Kohler
    Stabilisers
    Electrically driven, zero-speed function
  • Max speed
    21 knots
    Cruising speed (85% rpm)
    19 knots
    Range
    3,000 nm @ 12 knots
    Fuel
    29,600 l / 7,820 US gallons
    Fresh water
    9,500 l / 2,245 US gallons
    Noise levels At anchor Cruising speed
    Main salon 40 dB(A) 59 dB(A)
    Owner suite 38 dB(A) 58 dB(A)
    VIP cabins 34 dB(A) 48 dB(A)
    Wheelhouse 34 dB(A) 50 dB(A)
  • Guests
    11 in 5 cabins
    Crew
    6 in 3 cabins
    Tender
    5,4 m / 17’5”
    Classification
    RINA commercial, LY4 compliant
    Notations
    RINA Comfort Class, RINA Green Star
    Flag
    Cayman islands / Malta
    Naval architecture
    Van Oossanen
    Exterior Design
    Dobroserdov Design
    Interior Design
    Giuseppina Arena / Dynamiq

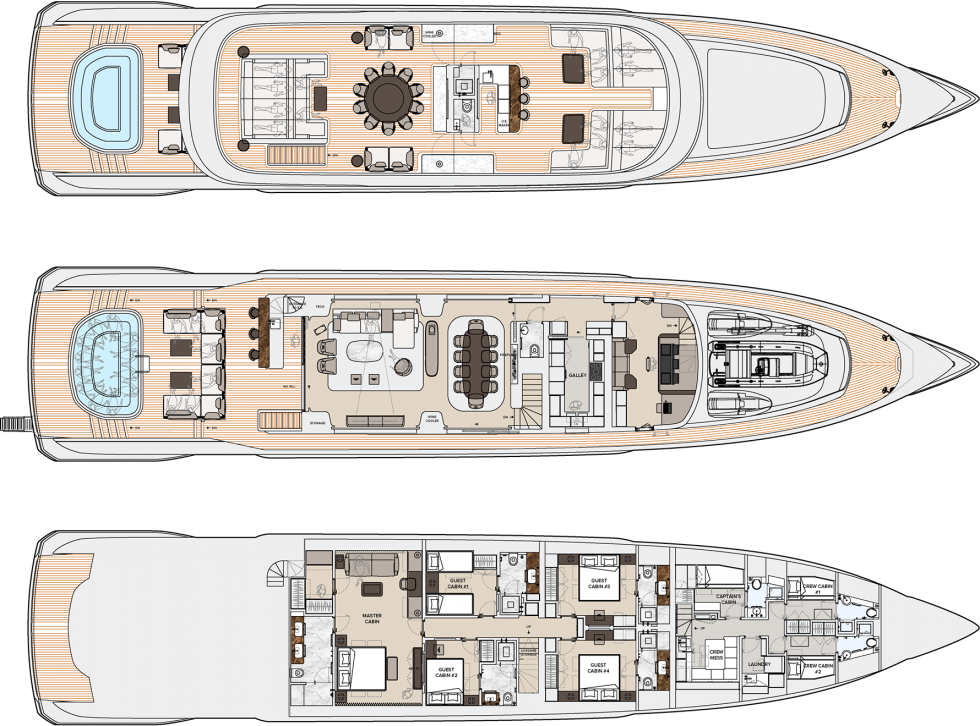

Deck plans

contact us for more info
